Hydraulic Breaker
& Attachments

SANHA / Hydraulic breakers

S53V-3G

Hydraulic breaker

液压破碎锤

Carrier weight

2.5–4.5 t

Dimensions (L × W × H)

1430 × 350 × 460 mm

Equipment weight

150 kg

Chisel diameter × length

Ø55 × 550 mm

SANHA / Hydraulic breakers

S135GV-20G

Hydraulic breaker

液压破碎锤

Carrier weight

16.0–21.0 t

Dimensions (L × W × H)

2090 × 560 × 680 mm

Equipment weight

1780 kg

Chisel diameter × length

Ø135 × 1200 mm

SANHA / Hydraulic breakers

S175V-50G

Hydraulic breaker

液压破碎锤

Carrier weight

40.0–50.0 t

Dimensions (L × W × H)

2900 × 740 × 880 mm

Equipment weight

4070 kg

Chisel diameter × length

Ø175 × 1600 mm

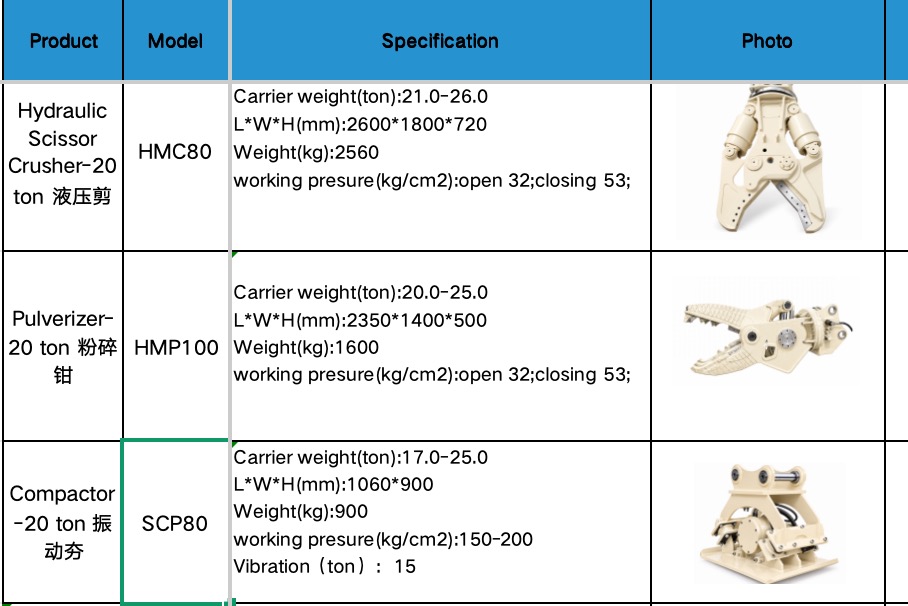

SANHA / Attachments

HMC80

Hydraulic scissor crusher — 20 ton class

液压剪 — 20 吨级

Carrier weight

21.0–26.0 t

Dimensions (L × W × H)

2600 × 1800 × 720 mm

Equipment weight

2560 kg

Working pressure — as supplied

open 32 / closing 53 kg/cm²

Opening/closing pressure values and units are reproduced as supplied and require confirmation before selection.

SANHA / Attachments

HMP100

Pulverizer — 20 ton class

粉碎钳 — 20 吨级

Carrier weight

20.0–25.0 t

Dimensions (L × W × H)

2350 × 1400 × 500 mm

Equipment weight

1600 kg

Working pressure — as supplied

open 32 / closing 53 kg/cm²

Opening/closing pressure values and units are reproduced as supplied and require confirmation before selection.

SANHA / Attachments

SCP80

Vibratory compactor — 20 ton class

振动夯 — 20 吨级

Carrier weight

17.0–25.0 t

Dimensions — as supplied

1060 × 900 mm

Equipment weight

900 kg

Working pressure — as supplied

150–200 kg/cm²

Vibration — as supplied

15 t

The source lists only two dimensions. The third dimension and the meaning of the vibration value “15 ton” require confirmation.
