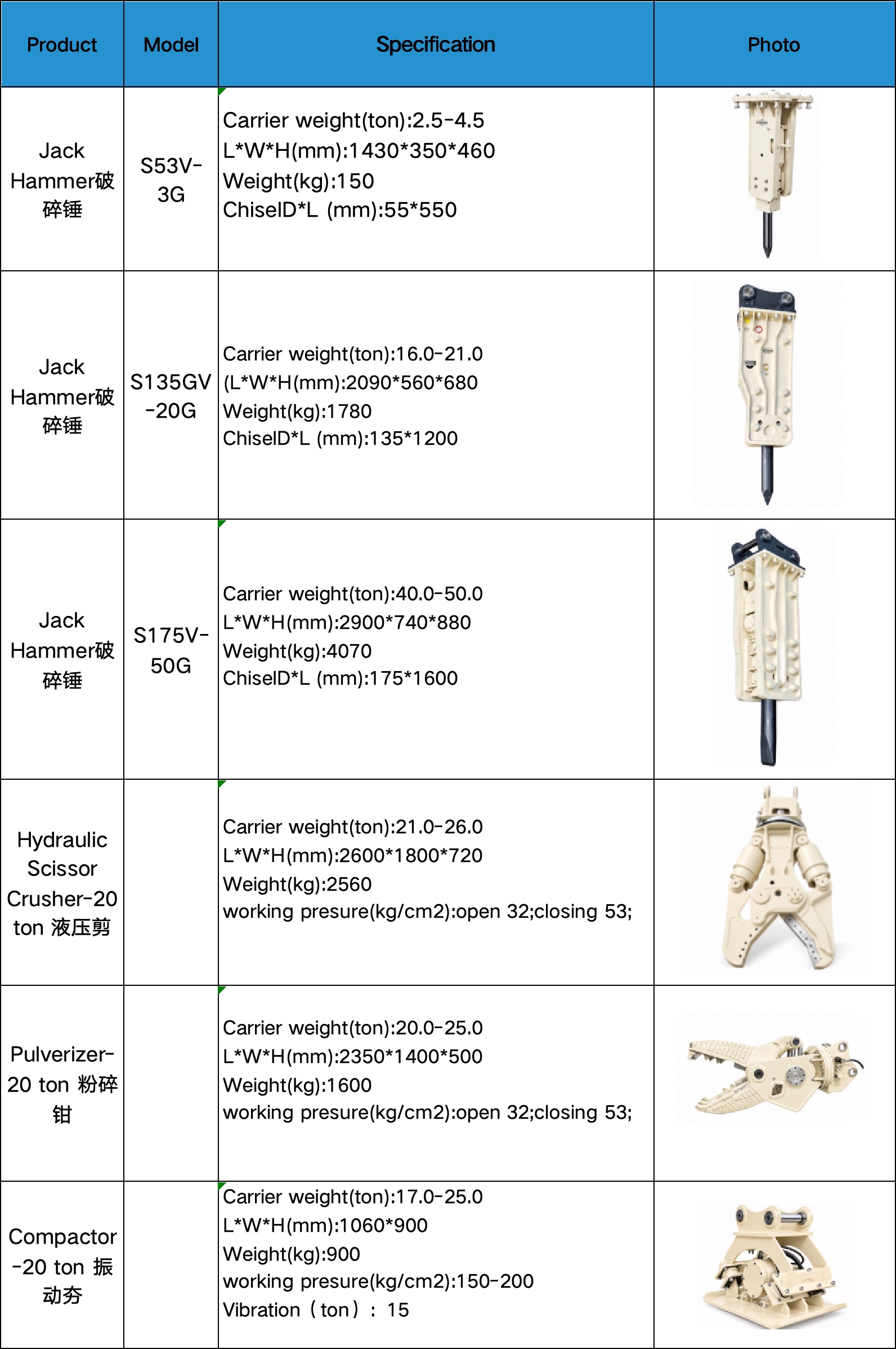

Hydraulic breaker
- Carrier weight
- 2.5–4.5 t
- Dimensions (L × W × H)
- 1430 × 350 × 460 mm
- Equipment weight
- 150 kg
- Chisel (diameter × length)
- Ø55 × 550 mm
JOINSTAR / Products
The right equipment.
The right support.
Explore our core product categories. Share equipment details and project requirements to discuss specifications and sourcing.
EQUIPMENT & ATTACHMENTS
Explore the attachment range.
Hydraulic breaker
- Carrier weight
- 16.0–21.0 t
- Dimensions (L × W × H)
- 2090 × 560 × 680 mm
- Equipment weight
- 1780 kg
- Chisel (diameter × length)
- Ø135 × 1200 mm
Hydraulic breaker
- Carrier weight
- 40.0–50.0 t
- Dimensions (L × W × H)
- 2900 × 740 × 880 mm
- Equipment weight
- 4070 kg
- Chisel (diameter × length)
- Ø175 × 1600 mm
Hydraulic scissor crusher — 20 ton class
- Carrier weight
- 21.0–26.0 t
- Dimensions (L × W × H)
- 2600 × 1800 × 720 mm
- Equipment weight
- 2560 kg
- Working pressure (as supplied)
- open 32 / closing 53 kg/cm²
Opening/closing pressure values and units require supplier confirmation before selection.
Discuss requirementsPulverizer — 20 ton class
- Carrier weight
- 20.0–25.0 t
- Dimensions (L × W × H)
- 2350 × 1400 × 500 mm
- Equipment weight
- 1600 kg
- Working pressure (as supplied)
- open 32 / closing 53 kg/cm²
Opening/closing pressure values and units require supplier confirmation before selection.
Discuss requirementsVibratory compactor — 20 ton class
- Carrier weight
- 17.0–25.0 t
- Dimensions (L × W × H)
- 1060 × 900 mm
- Equipment weight
- 900 kg
- Working pressure (as supplied)
- 150–200 kg/cm²
- Vibration force (as supplied)
- 15 t
Only two dimensions supplied; the third dimension and vibration force unit require confirmation.
Discuss requirementsExcavator spare parts
Components for maintenance and repair. Share the machine brand, model, serial number and part reference.
Discuss requirementsBuckets & attachments
Buckets and working attachments selected around the carrier, application and site conditions.
Discuss requirementsHydraulic breakers
Discuss carrier compatibility, operating weight, hydraulic flow and application requirements.
Discuss requirementsLowbed trailers
Heavy equipment transport configurations, including hydraulic detachable gooseneck trailers.
Discuss requirementsConstruction equipment
Equipment sourcing aligned with your application, working environment and project schedule.
Discuss requirementsFeatured configuration
Hydraulic detachable gooseneck lowbed
Initial configuration reference: CTY9400GYY. Final dimensions, axle arrangement and compliance documentation require supplier confirmation.
- Frame material
- Q355B steel
- Main beam plates
- 25 mm upper / 25 mm lower
- Web plate
- 12 + 8 mm
- Electrical system
- 24 V
- ABS
- 4S/2M
- Landing gear
- 28 t geared
Specifications, availability, delivery and service scope are subject to confirmation.
